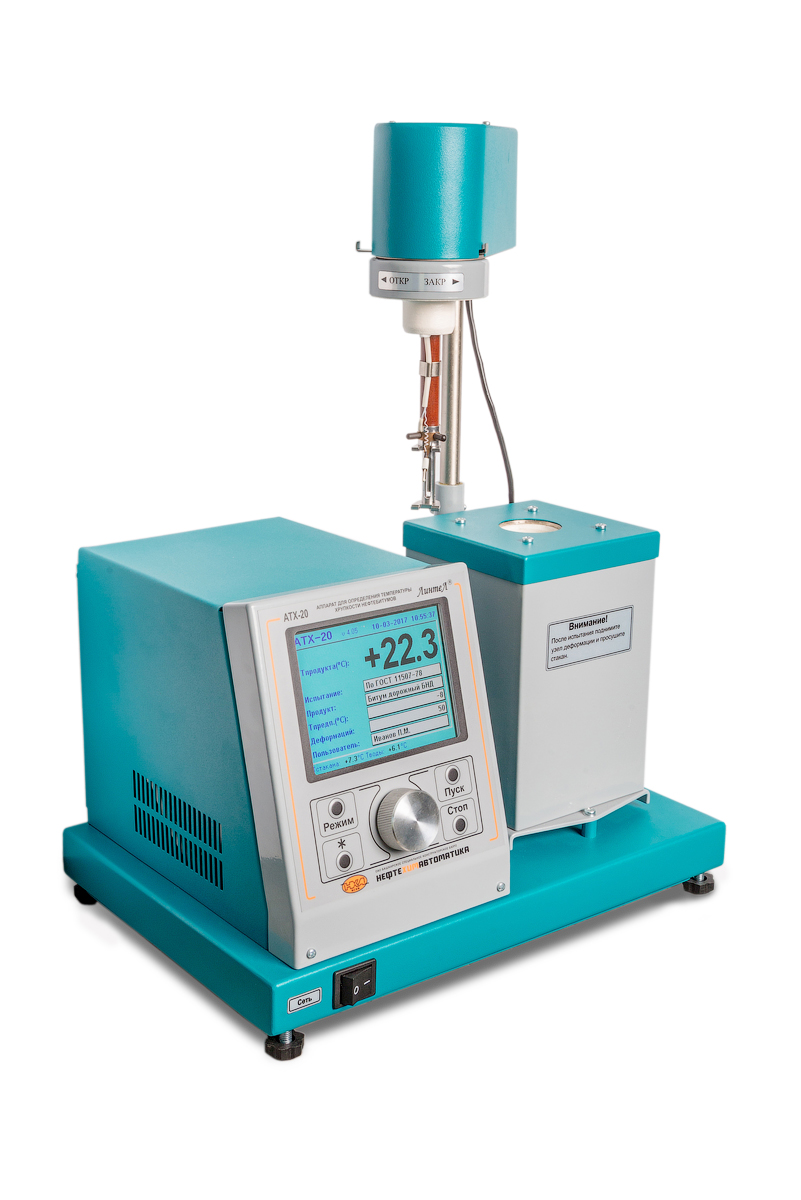

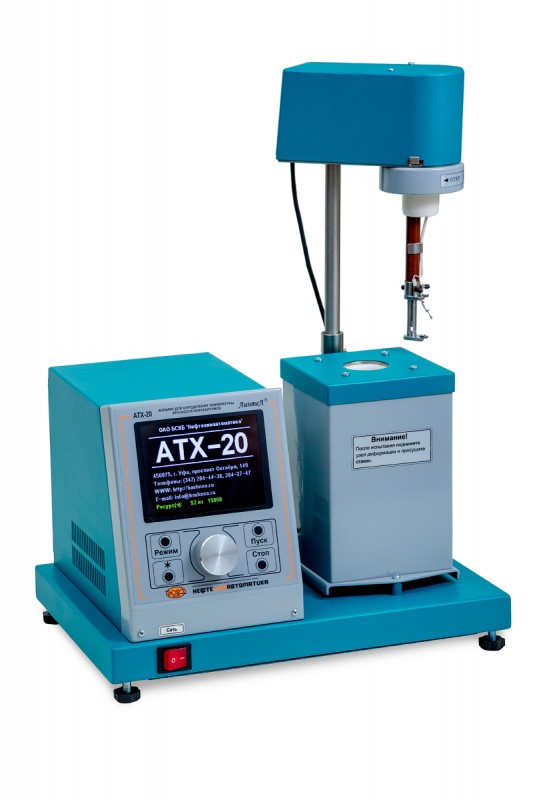

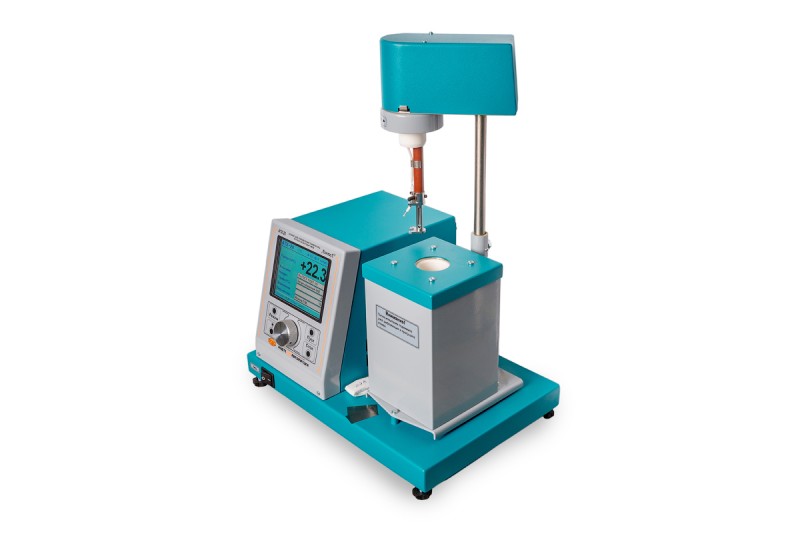

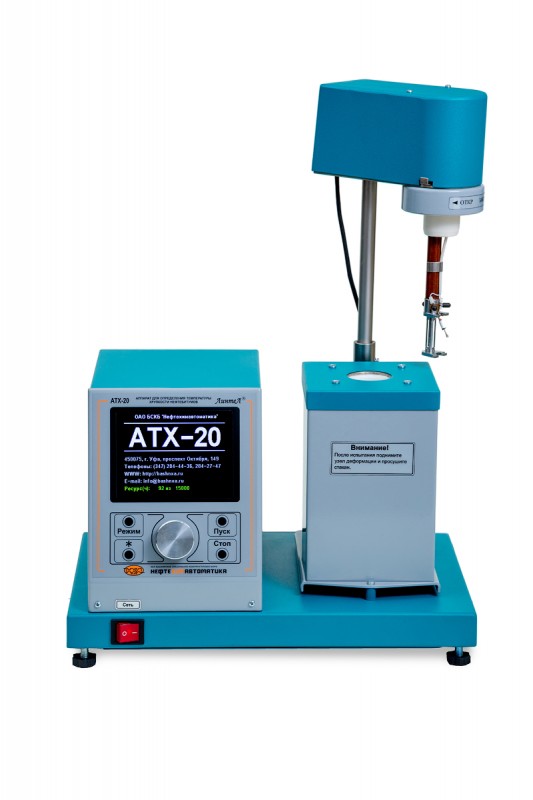

LinteL® ATH–20
Automatic Fraass Breaking Point Tester
Standards
EN 12593
IP 80
Price: Request a Quote €
Request Quotation
|
Features Specifications Complete Set
- LinteL ATH-20 provides full automation of the test process. Tester works in several modes: "standard", "accelerated", "express". When the mode is selected, all necessary parameters and test conditions are set and maintained automatically.
- Tester supports automatic lowering of the sample temperature using the built-in cooler on the Peltier elements at a specified speed, fixing and storing the breaking point temperature in the non-volatile memory.
- Test logging provides storage of up to 100 test results, and allows you to filter results by method, date, and product.
- Calculation of the average breaking point temperature.
- The ability to check the readings of the sample temperature sensor with an exemplary thermometer.
- Full self-diagnosis system with indication of the causes of malfunctions on the display.
- Stop the test process at the end of the analysis with an audible alarm.
- The high-contrast color TFT display provides an intuitive user interface with all the necessary information for testing and viewing the results.
- Test by “Express” method for products with unknown brittleness temperature.
- Integration with LinteL Link Data Collection System allows the collection and transfer of laboratory test results from the tester to a personal computer via wireless communication. Integration with the laboratory information system LinteL LIMS provides a complex automation of laboratory activities.
| SPECIFICATIONS |
| Measurement range of breaking point temperature |
–45 to + 20°С |
| Cooling system type |
based on Peltier modules;
Peltier modules are cooled by water |
| ACCURACY PARAMETERS |
| Maximum distance between the grooves clips |
39,9 to 40,1 mm |
| Minimum distance between the grooves clips |
36,4 to 36,6 mm |
| Sizes of a working plate from a steel tape |
Length 40,95 to 41,05 mm
Width 19,8 to 20,2 mm
Thickness 0,13 to 0,17 mm |
|
Tester evenly bends and straightens the working plate:
-bending process time -the process of bending and straightening |
10 to 12 sec
20 to 24 sec |
|
Temperature drop rate,
with a deviation, max |
1,0 ºС /minute
0,1 ºС /minute |
| PERFORMANCE DATA |
| Power supply |
450 W max |
| Dimensions |
400 х 555 х 275 mmin the sample loading state;
400 х 395 х 275 mm in working condition |
| Weight |
12,5 kg max |
| Ambient temperature |
+10 to +35 °C |
| Relative humidity at a temperature of +25°С |
80% max |
| Voltage |
187 to 242 V |
| Frequency |
49 to 51 Hz |
| Service life |
6 year (15,000 hours max) |
| Warranty period |
1 year (2,500 hours max) |
| SAFETY |
| Audio signals |
Beeping at the end of the test and failure detection |
| Diagnostic and setting |
Built-in algorithms for self-diagnostics and settings, user notification about causes of malfunctions |
| COMPLETE SET |
| LinteL ATH-20 |
1 pc. |
| Plate 36,5mm |
1 pc. |
| Plate 40mm |
1 pc. |
| Сlamp screw 8…12 |
2 pcs. |
| Silicone tube 10х2 1,5m |
2 pcs. |
| Working plate |
10 pcs. |
| Operating manual |
1 pc. |
| Passport |
1 pc. |
| Certification program and methodology |
1 pc. |
| OPTIONS |
| LinteL Link Data Collection System |
Software and hardware intended for collection and transmission of test results from devices LinteL to a personal computer by wireless communication |
| Laboratory information system LinteL LIMS |
Software and hardware designed for complex automation of laboratory activities |
|
Electronic thermometer (versions #1) |
Temperature meter
(TTSM 9410 M2) with sensor TTTS 01-180 |
| LinteL TKS-20 |
Liquid thermocriostat
Intended for temperature control of samples of petroleum products and work in conjunction with the tester: ATH-20
Temperature range from -20 to +100°C; Accuracy of maintaining t ±0.1°C |
| LinteL UPP-10 |
Sample preparation device
Used with LinteL ATH-20. Temperature range from + 80 to +250°C. Heating temperature of each 1 °C |
|
|
