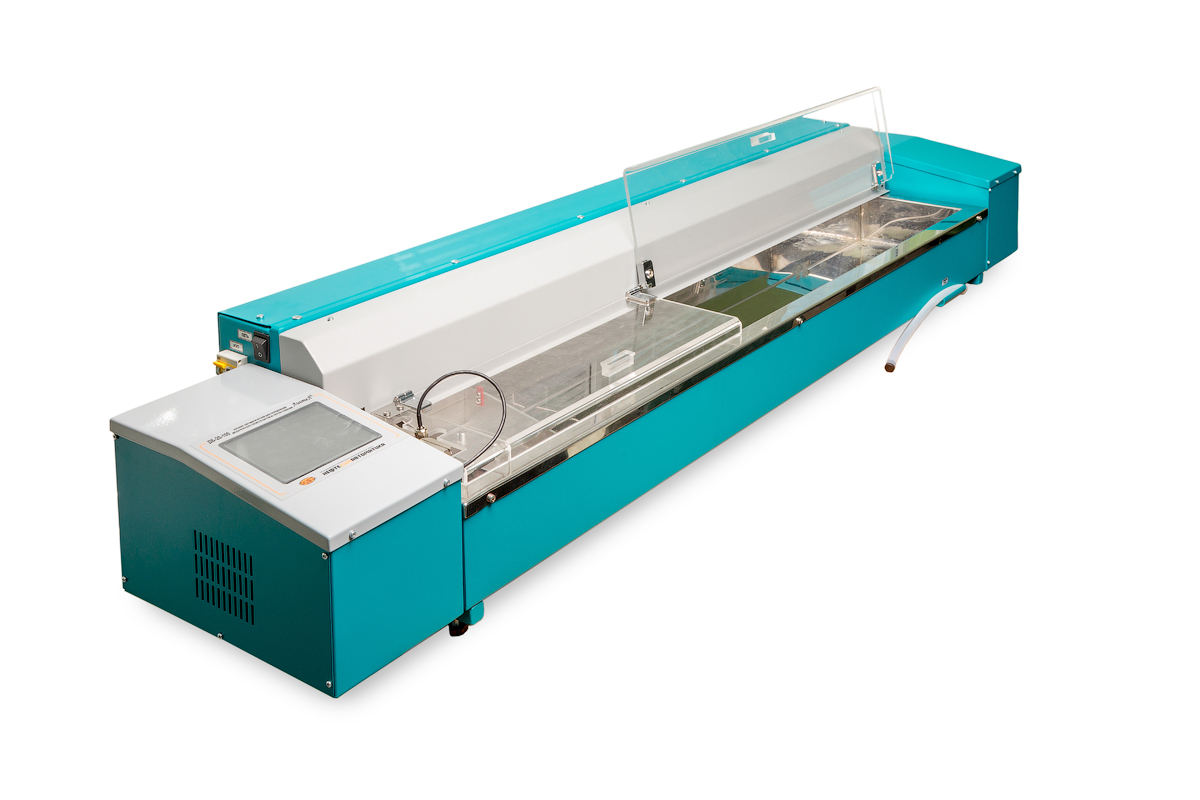

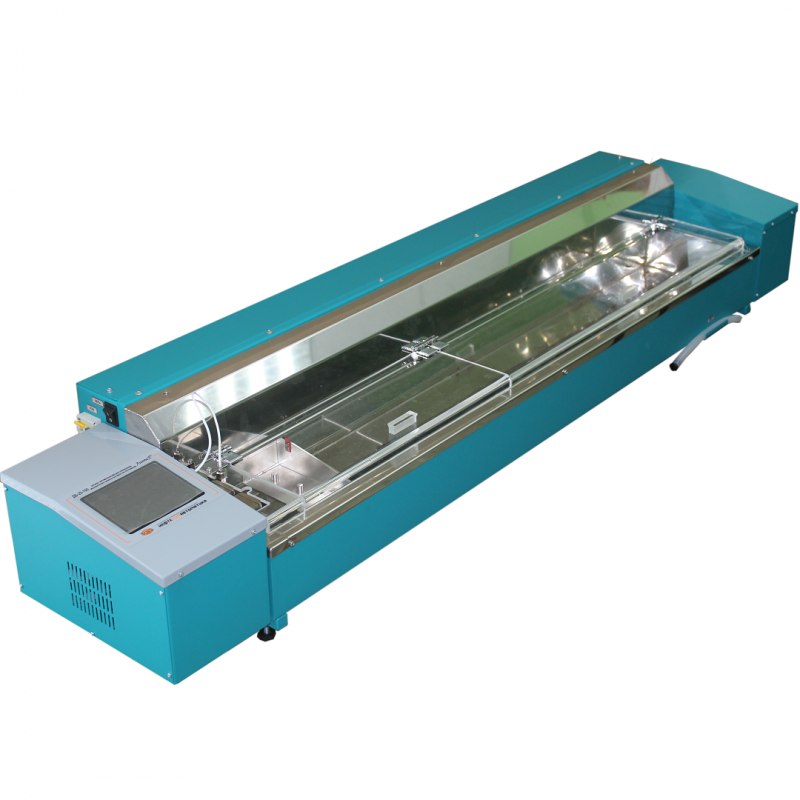

LinteL® DB–20–100
Ductilometer. Ductility of Bituminous Materials
Standards
ASTM D 113
ASTM D 6084
EN 13398
EN 13587
EN 13589
EN 13703 |
Price: Request a Quote €
Request Quotation
|
Features Specifications Complete Set
- Lintel DB-20-100 provides automatic testing of bitumen samples for tensile strength (ductility), elasticity, strain energy, testing of plastics and polymers for tensile strength.
- Tester provides the set temperature in the test zone due to the built-in thermocriostat from -10 to +40°C.
- Tester allows testing from 1 to 3 samples with a maximum breaking force of up to 30 kg per sample.
- Automatic carriage movement at a set speed.
- Built-in pump for mixing the bath coolant and a modern cooling system ensure a minimum temperature gradient in different parts of the bath.
- Test logging provides storage of up to 100 test results and 30 sample loading schedules.
- Memorization of the tensile value and the sample number in automatic mode by the drop in the tension force or by pressing the remote button for fixing the sample rupture by the operator.
- Possibility of checking the readings of the bath temperature sensor with an exemplary thermometer.
- The color touch screen makes it easy to learn and use the device on a daily basis.
- A set of collapsible forms supplied with the ductilometer comply with GOST, ASTM, EN and provide convenient preparation of samples for testing.
- Transparent ergonomic cover.
- Full self-diagnosis system with indication of the causes of malfunctions on the display.
- Stop the test process at the end of the analysis with an audible alarm.
- The ability to start the thermostat on a timer – "delayed start".
- Integration with LinteL Link Data Collection System enables collection and transfer of laboratory test results from the tester to a personal computer via wireless communication. Integration with the laboratory information management system LinteL LIMS provides complex automation of laboratory activities.
| SPECIFICATIONS |
| Maximum length of elongation of test samples |
1 000 mm |
| Number of simultaneously tested samples |
1 to 3 |
| Maximum load on each meter |
300 N |
| Speed of movement of the carriage |
0,1 to 100 cm/min |
| Bath volume |
17 liters |
| Range of supported bath temperature |
-10 to +40 °C |
| ACCURACY PARAMETERS |
| Force measurement accuracy |
±1 % |
| Uneven temperature of the coolant in the bath |
0,5 °С, max |
| The error of temperature measurement |
±0,2 °С, max |
| Accuracy of carriage speed maintenance |
±0,25 cm/min, max |
| Length measurement accuracy |
± 2mm |
| The deviation of the sizes of forms |
meet the standards |
| PERFORMANCE DATA |
| Power supply |
650 W, max |
| Dimensions |
1750 х 260 х 370 мм (W х H х D) |
| Weight (in the package) |
100 kg, max |
| Ambient temperature |
10 to 35 °C |
| Relative humidity at a temperature of +25°С |
80%, max |
| Voltage |
198 to 242 V |
| Frequency |
49 to 51 Hz |
| Service life |
6 year (15,000 hours max) |
| Warranty period |
1 year (2,500 hours max) |
| SAFETY |
| Electrical safety |
Differential automatic circuit breaker, preventing electric shock for the user and the tester damage due to short circuit |
| Audio signals |
Beeping at the end of the test and failure detection |
|
Diagnostic and setting |
Built-in algorithms for self-diagnostics and settings, user notification about causes of malfunctions |
| COMPLETE SET |
| Ductilometer LinteL DB-20-100 |
1 pc. |
| Form for bitumen EN 13398, ASTM D 113, GOST 11505, GOST R 52056, GOST 33138 |
6 pcs. |
| Shape plate |
6 pcs. |
| Table for forms with samples |
1 pc. |
| Remote button |
1 pc. |
| Knife |
1 pc. |
| Coolant filter |
1 pc. |
| Water softener filter |
1 pc. |
| Silicone tube 10х2 (1.5 m) |
2 pcs. |
| Quick-release coupling 1/2" |
2 pcs. |
| Clamp 16 mm |
1 pcs. |
| Accessory box |
1 pc. |
| Operating manual |
1 pc. |
| Passport |
1 pc. |
| Certification program and methodology |
1 pc. |
| OPTIONS |
| LinteL Link Data Collection System |
Software and hardware intended for collection and transmission of test results from devices LinteL to a personal computer by wireless communication |
| Laboratory information system LinteL LIMS |
Software and hardware designed for complex automation of laboratory activities |
|
Electronic thermometer(versions #1) |
Temperature meter (TTSM 9410 M2) with sensor TTTS 01-180 |
|
|
